Whyte

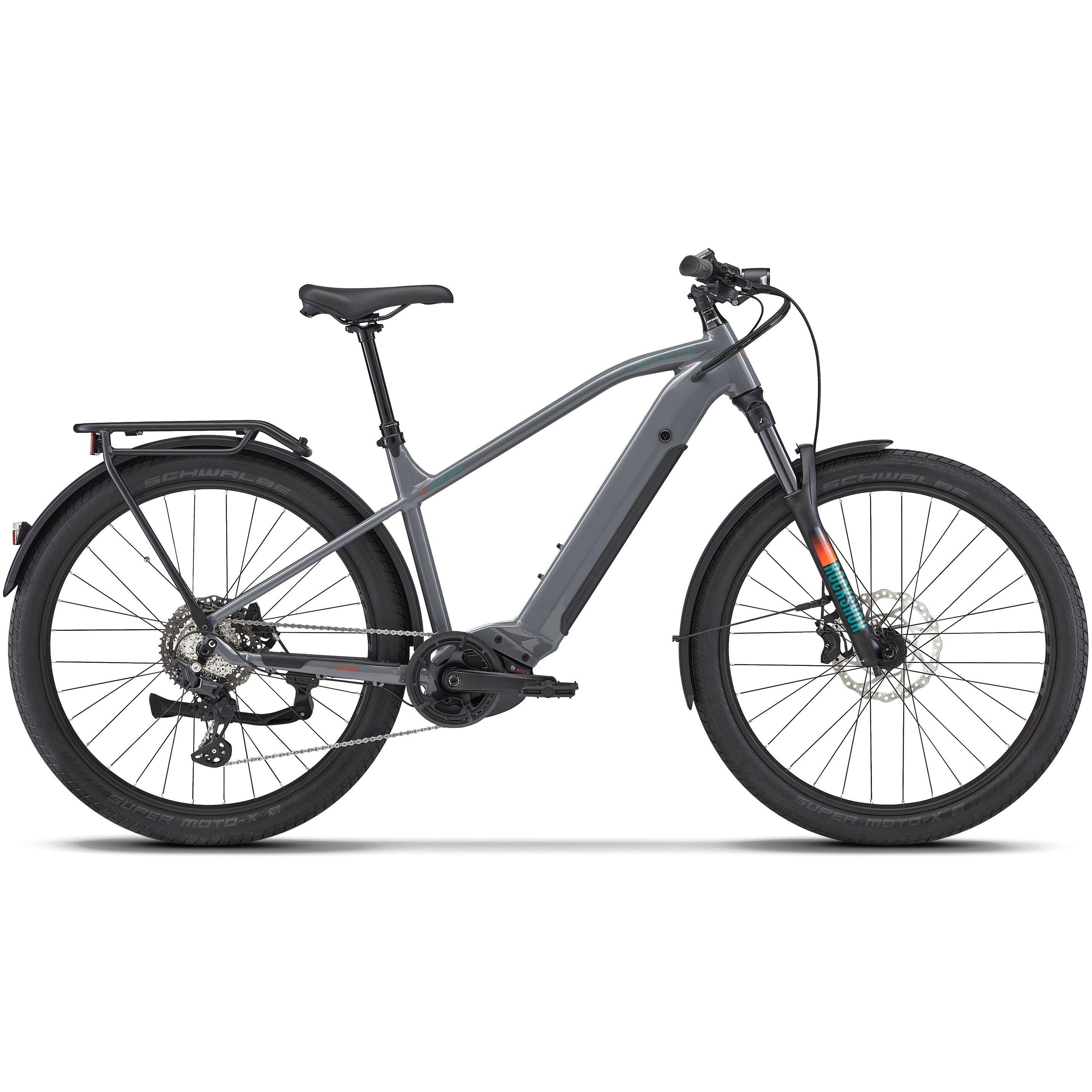

E-506 Electric Hybrid Bike
£1,949.00£3,899.00
Grey
Description
Product code: 930466
About the Whyte E-506 SUV All-Terrain E-Bike
The E-506 SUV is the capable, durable, versatile and effortlessly enjoyable e-bike for everything your everyday demands. The perfect way to swap the ever-increasing cost, congestion and frustration of urban car use for a healthier, happier, more efficient and more economical way to move. Safe and secure. Fast and fun. Versatile and helpful. For school, shopping, socialising or just taking time out for your heart and head. Whatever you’re doing, the E-506 SUV is a better way of living the life you love.
Key Features
- Powerful and reliable Bosch Performance Line CX 85Nm motor
- Large capacity Bosch PowerTube 500Wh removable battery
- Simple and durable 1x10 Shimano LinkGlide transmission
- Four-piston hydraulic disc brakes for dependable all-weather braking
- Integrated lights front and rear
- Tough alloy rear rack to carry whatever you need
- ‘Dropper’ seatpost lets raise and lower the saddle as you ride
- Full set of mudguards front and rear
Specifications
Frameset
- Frame: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
- Fork: RockShox 35 Silver R 27.5, 120mm Travel, 37mm Offset, Coil, Fast Black Coating, Adjustable Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
Wheels
- Wheelset: WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
- Tyres: Schwalbe, Super Moto-X, 27.5 x 2.4, Greenguard Puncture Protection
Drivetrain
- Shifters: Shimano M5130 Deore 10 Speed
- Rear Derailleur: Shimano M5130 Deore, GS, 10 Speed
- Chain: Shimano CN-LG500, 10 Speed
- Crankset: Whyte, Steel narrow/wide, 160mm, Direct Mount 38T for Bosch Performance Line CX, Black
- Cassette: Shimano CS-LG600, 10 Speed, 11-43
Components
- Handlebar: Whyte 6061 Alloy, 25mm Rise, 31.8mm, 720mm Wide
- Stem: Whyte Alloy 6061, 60mm Extension
- Brakes: Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount, Internal Routing
- Brake Levers: Tektro Orion
- Saddle: Whyte Custom, SUV Comfort sport, Single panel, with moulded rear handle
- Seatpost: Whyte drop.it, 30.9, S 125mm, M/L/XL 150mm Travel, Paddle Remote Lever
- Pedals: Not Included
E-System
- Battery: Bosch Power Tube PT500 Horizontal
- Motor: Bosch Performance Line CX (25km/h) 85Nm
- Display: Bosch Purion Performance Line
- Battery Charger: 2A (100-240V)
Bike Sizing
Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size.
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height | 5'3 - 5'6 / 160cm - 168cm | 5'6 - 5'10 / 168cm - 178cm | 5'10 - 6'2 / 178cm - 188cm | 6'2 - 6'6 / 188cm - 198cm |
