Pinnacle

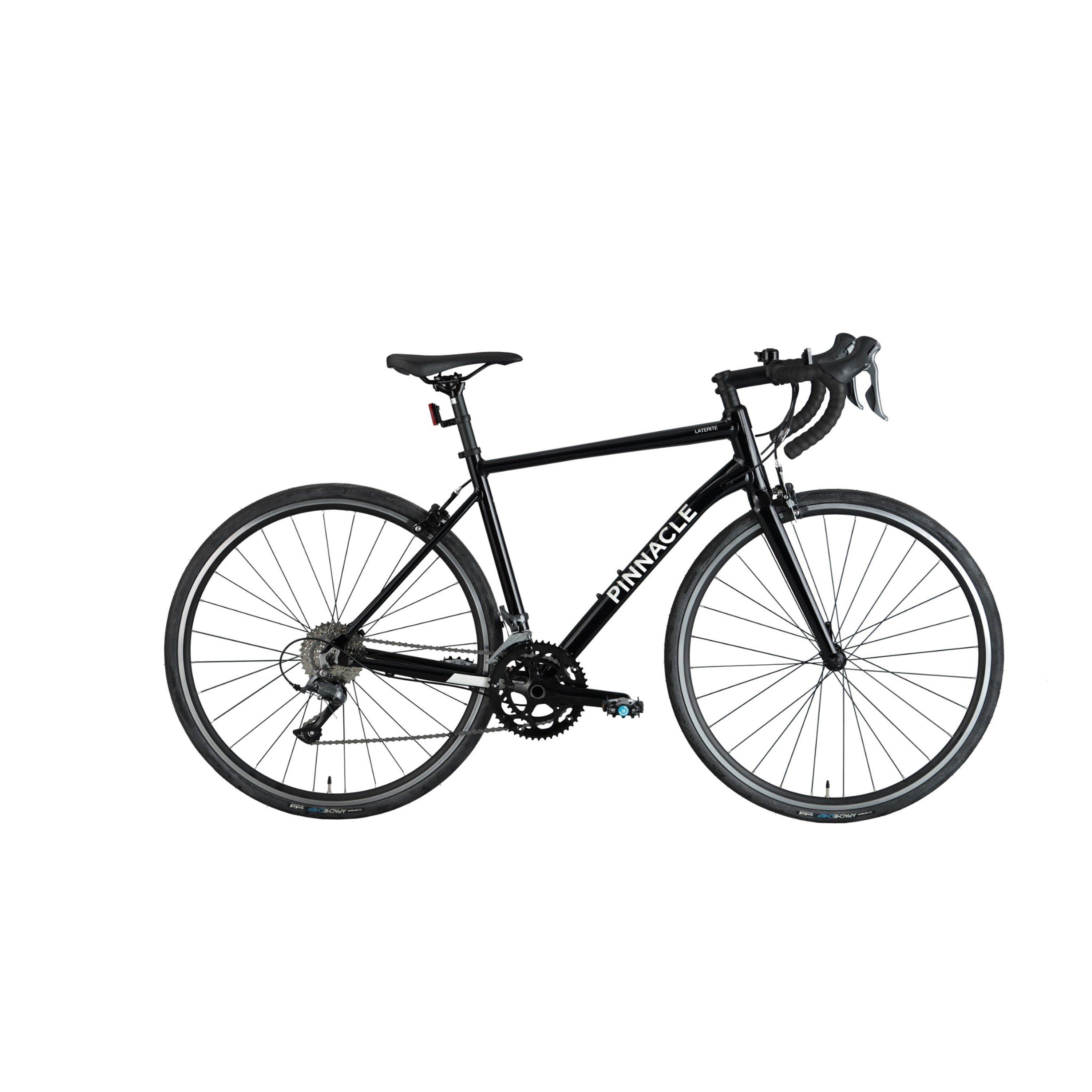

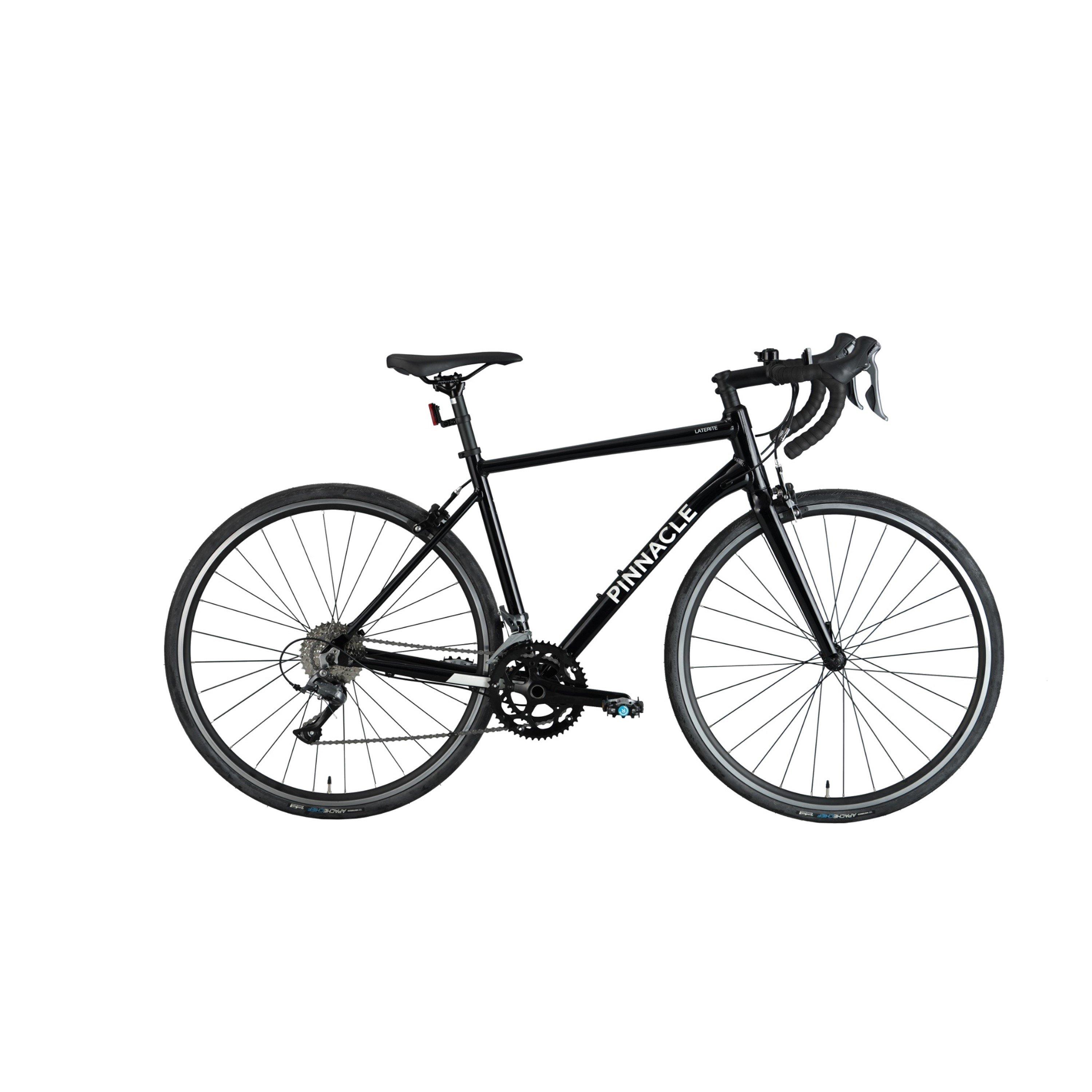

Pinnacle Laterite Road Bike
£499.00£749.00
Black
Description
Product code: 930363
The Laterite is an ideal introduction to drop-bar road cycling, whether you're commuting to work, building fitness or enjoying weekend rides on the open road. Its lightweight 6061 alloy frame features a relaxed endurance geometry that delivers a comfortable riding position for long days in the saddle, while the carbon-bladed fork helps absorb road vibrations for a smoother ride. Paired with wide 700x30c tyres, the Laterite offers added comfort and confidence across a variety of road surfaces.
Designed for riders looking for a modern road bike at an affordable price, the Laterite combines dependable Shimano Claris 2x8 gearing with responsive Tektro dual-pivot calliper brakes for reliable performance. A durable alloy wheelset and versatile Vee Apache tyres complete a capable package that's equally suited to commuting, leisure rides and building confidence on the road.
Key Features
- Lightweight 6061 alloy frame with endurance geometry and internal cable routing
- Carbon-bladed fork with alloy crown and steerer for improved ride comfort
- Shimano Claris 2x8 drivetrain for smooth and reliable shifting
- Tektro R315 dual-pivot calliper brakes for dependable stopping power
- Vee Apache 700x30c tyres for comfort and grip on varied road surfaces
Specifications
Frameset
- Frame: 6061 alloy, internal cable routing
- Fork: Carbon blade, alloy crown and steerer, QR
Wheelset
- Wheelset: 700c alloy rims on Formula hubs
- Rims: 700c Rigida alloy double wall rims, 21mm, Presta valve
- Front hub: Formula alloy, 32h, 100mm QR
- Rear hub: Formula alloy, 28h, 130mm QR
Tyres
- Tyres: Vee Tire Apache, 700x30c, wire bead, multi-purpose compound
Drivetrain
- Front derailleur: Shimano Claris R2000
- Rear derailleur: Shimano Claris R2000, 8-speed
- Shifters: Shimano Claris R2000, 2x8-speed
- Bottom bracket: Integrated with chainset
- Chainset: Prowheel Ounce 421C, 50/34T, 170mm crank
- Cassette: Shimano Claris HG50, 11-34T, 8-speed
- Chain: KMC Z-83
- Number of gears: 16
Brakes
- Brake: Tektro R315 dual-pivot calliper brakes
Finishing Kit
- Handlebar: Alloy double butted, 31.8mm clamp, 80mm reach, 124mm drop, 420mm width
- Stem: Alloy, 31.8mm clamp, 7° rise, 110mm
- Bar tape: Velo, black, with end plugs
- Saddle: Black, steel rails
- Seatpost: Alloy, 27.2mm, 350mm, 15mm offset
Laterite Sizing
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height (cm) | 168 - 175 | 173 - 180 | 178 - 186 | 183 - 191 |
| Rider Inseam (cm) | 71 - 78 | 76 - 84 | 78 - 86 | 84 - 91 |
